OPTICAL TURNSTILES: Although custom designs are suitable for most applications, some very highly visible locations require the discreet security provided by optical turnstiles. AVL manufactures a large selection of optical turnstiles ranging from motorized barriers that are activated by sensors to barrier-free turnstiles controlled by programmable logic controllers and optical beams. Barrier-free optical turnstiles are not intended for all types of security applications, but if an unobtrusive system is required for a supervised area, these turnstiles can easily integrate into any surroundings. Materials and finish vary according to individual requirements. Visual and audio alarms are available to indicate unauthorized passage. Although not considered high security, optical turnstiles are a viable solution to certain access control situations.

THE WORLD'S MOST SOPHISTICATED ACCESS CONTROL TURNSTILES

AVAILABLE IN A WIDE VARIETY OF CABINET MATERIALS AND FINISHES WITH MATCHING METAL, CORIAN OR STONE TOPS.

Above turnstile is model TOT- 20EP with a Nevamar laminate cabinet and a corian top cover. Special extra large dimensions reflect custom design capabilities.

"THE FIRST OPTICAL TURNSTILE AT AN AFFORDABLE PRICE AND FABRICATED BY A TURNSTILE MANUFACTURER"

OPERATION

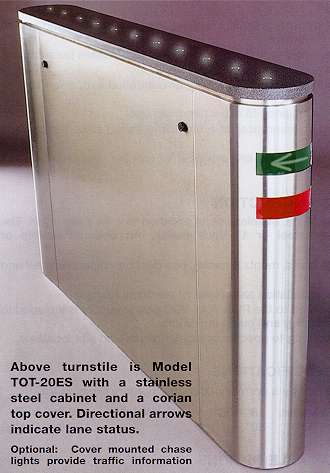

• The AVL Model TOT-20E Optical Turnstile is designed for high volume, low to moderate security applications where aesthetics, finishes and throughput are integral along with low maintenance, ease of use and reliability.
• The interaction of the sensors, lane status lights, graphical display, audible indicators and alarms is controlled by a Programmable Logic Controller.
• Turnstile are released via a normally open, dry contact closure from a card reader, push button, biometric reader or other control device.
• Lane configuration can be any combination of controlled entry or controlled exit, free-entry, or free-exit, no entry or no exit.
• Lane width can be configured for ADA compliance to allow handicap use.
• Sensor array restricts passage to one authorized user at a time. Any invalid pass through will initiate an alarm.
• Internal or remote lane status and control panels are available to monitor and change each individual lanes current condition

CONSTRUCTION

• The standard cabinet is fabricated from 16 ga. stainless steel polished to a #4 satin finish. The standard top cover is either stainless steel or 1" thick corian. An optional marble or granite cover is available.
• Other available cabinet materials include brass, muntz (bronze), powder coated carbon steel and a plastic laminate.
• A lockable access door allows a simple installation and wiring of electrical harness.
• All internal electric components are pre-wired to the PLC. A 24 VDC power supply is included to operate sensors, lights, PLC, graphical display and audio indicators.
• Lane cabinet sizes can be adjusted according to specific customer needs and site locations.

SPECIFICATIONS
Each controlled direction is activated by a normally open, momentary dry contact.

AVAILABLE OPTIONS
