Paging & Soundmasking System Kit

	AVL_SM-KIT_Paging (2) All Call Paging Microphones (1) Dual-Channel Mic Pre-Amp with Equalization (1) 6-Channel, 120 Watt Mixer / Amplifier (1) Soundmasking Generator ** up-to 84 speakers can be used on this system **
(2) Single-Zone Paging Microphones Model PLE-1CS - $ 516.00 Pair Quantity :		Two-Channel Paging-Mic Pre-Amp with Equalization  Model MIC2200 Quantity :

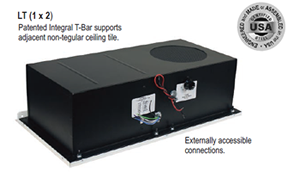

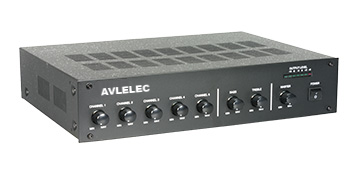

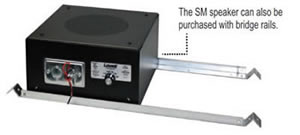

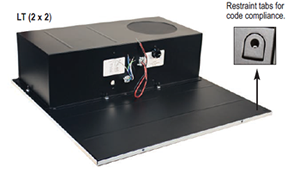

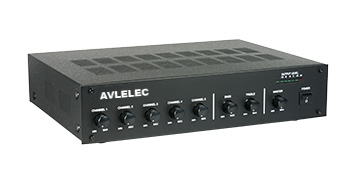

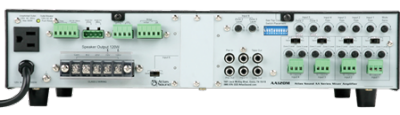

Six Channel, 120 Watt Mixer / Amplifier with Priority Model AA120M Quantity :	Soundmasking Speaker Quantity :	Soundmasking Generator Quantity :

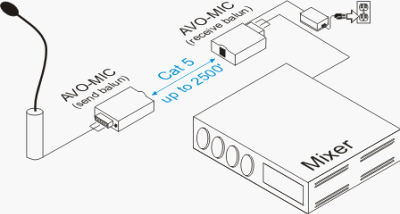

	Example System 1: A paging microphone is routed to a remote receiver via our AVO-MIC-F set. The baluns transmit the signal over 2,500 feet of standard Cat 5 cabling. The system is powered on the receive end.	The unit shall be a microphone balun set which transmits a preamplified microphone signal and phantom power up to 2,500 feet over standard unshielded twisted pair structured cabling, such as Cat 5.   The unit shall include a wallplate send balun and a rack-mountable receive balun. The maximum distance of the unit shall be 2,500 feet. The bandwidth shall be 20 Hz to 20 kHz. The impedance shall be 600 ohms, unbalanced. The isolation shall be 500 V. The nominal level shall be 1.0 volts. The insertion loss shall be 1dB. The common mode rejection shall be greater than 40 dB. The unit shall be powered by a 24 VAC power supply at the receive end. The power connector shall be a DIN connector. The connectors on the receive balun shall be one 3-pin screw terminal and one RJ45. The connectors on the send balun shall be one female XLR and one RJ45. The RJ45 pinout shall be pins 1 and 2 (pair two) for the audio channel and pins 4 and 5 (pair 1) for the power. The unit shall be an Intelix AVO-MIC-WP microphone balun set.
Microphone over Cat5 Model AVO-MIC Quantity :	To Run Microphone over Cat5 / Cat6	Architectural Specifications
Contact Information
How does an  AVLELEC  Soundmasking System Work? SAMPLE WHITE NOISE RECORDINGS White Noise White Paper	www.AVLELEC.com Soundmasking for Speech Privacy 8641 South Warhawk Road, Conifer Colorado 80433 Tel: 303-670-1099 * FAX: 303-679-8949 email: Patrick.McAllister@avlelec.com	Typical Soundmasking Sytem-Kit You Install with our Support Take a look at the type of Documentation we provide Click Here Children's Hospital Self-Install Kit
